Specifications:

Model	R30 V2
Optical Output Power	2W
Product Material	Aluminum 6061 Anode
Circuit Board Size	44*52mm
Laser wavelength	1064nm
Circuit Board	V/PWM Modulation Board
Wire Rod	22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens	φ6/glass
Fan	12V
Laser Beam Mode	Spot
Working Mode	Pulse Work
Lightspot Size	Φ0.03mm
Working Time	100000H
Working Temperature	10℃~32℃
Storage Temperature	-40℃~85℃
Light Temperature	Non-focal temperature: room temperature
Product Net Weight	520g

Features:
1. The world's first: AtomStack is the first to launch an industrial-grade 1064nm infrared laser module with a repetition rate of 20000Hz which is suitable for fast and fine metal engraving as well as non-metallic materials such as varnished wood furniture ABS and plastic.
2. Greatly improve work efficiency: After industrial design the net weight of the module is only 520g (the first generation and other products in the industry are 800g+). Movement speed and work efficiency can be increased by 40% under the same framework
3. Born for metal and plastic engraving: Infrared fiber laser has incomparable advantages in engraving metal and plastic surfaces. This is not possible with conventional diode blue lasers.
4. Better engraving effect: thanks to the AtomStack spot compression technology the spot of the R30 laser module is compressed into a circular laser spot with a diameter of 0.03mm. This makes it ideal for engraving on custom jewelry or metal. The engraving effect on the surface of the object is finer clearer and less prone to oxidation.
5. Rust removal: The 1064nm wavelength laser has excellent absorption ability to the metal surface coating and can remove rust on a small area of rusty metal without chemical reaction or secondary electrolysis.
6. High adaptability: R30 V2 laser module can be adapted to most AtomStack models including:
A40 Pro X40 Pro S40 Pro
A30 Pro X30 Pro S30 Pro
A20 Pro X20 Pro S20 Pro A20
A10 Pro X7 Pro S10 Pro X7
A5 Pro A5 Pro+
A5 M30 A5 M40 A5 M50
A5 20W A5 10W
P9 M50 P9 M40 P7 M40 P7 M30
7. If you have other brands of engraving machines such as Ortur NEJE Two-Trees etc. you can also install our AtomStack R30 V2 laser module and an adapter is included in the box.
8. Safety laser: Compared with blue laser infrared laser has its own safety characteristics. The non-focused light is cold light which will not cause burns if touched accidentally.
9. Long life: 1064nm laser light is stable with a long service life of 100000 hours (there will be a certain power attenuation after long-term use)

[Please note]: This accessory is not compatible with the ATOMSTACK Hurricane 55W CO2 Laser Cutter.

Price

Collections

Laser Module

AtomStack R30 V2 Upgraded Infrared Laser Module for Metal and Plastic

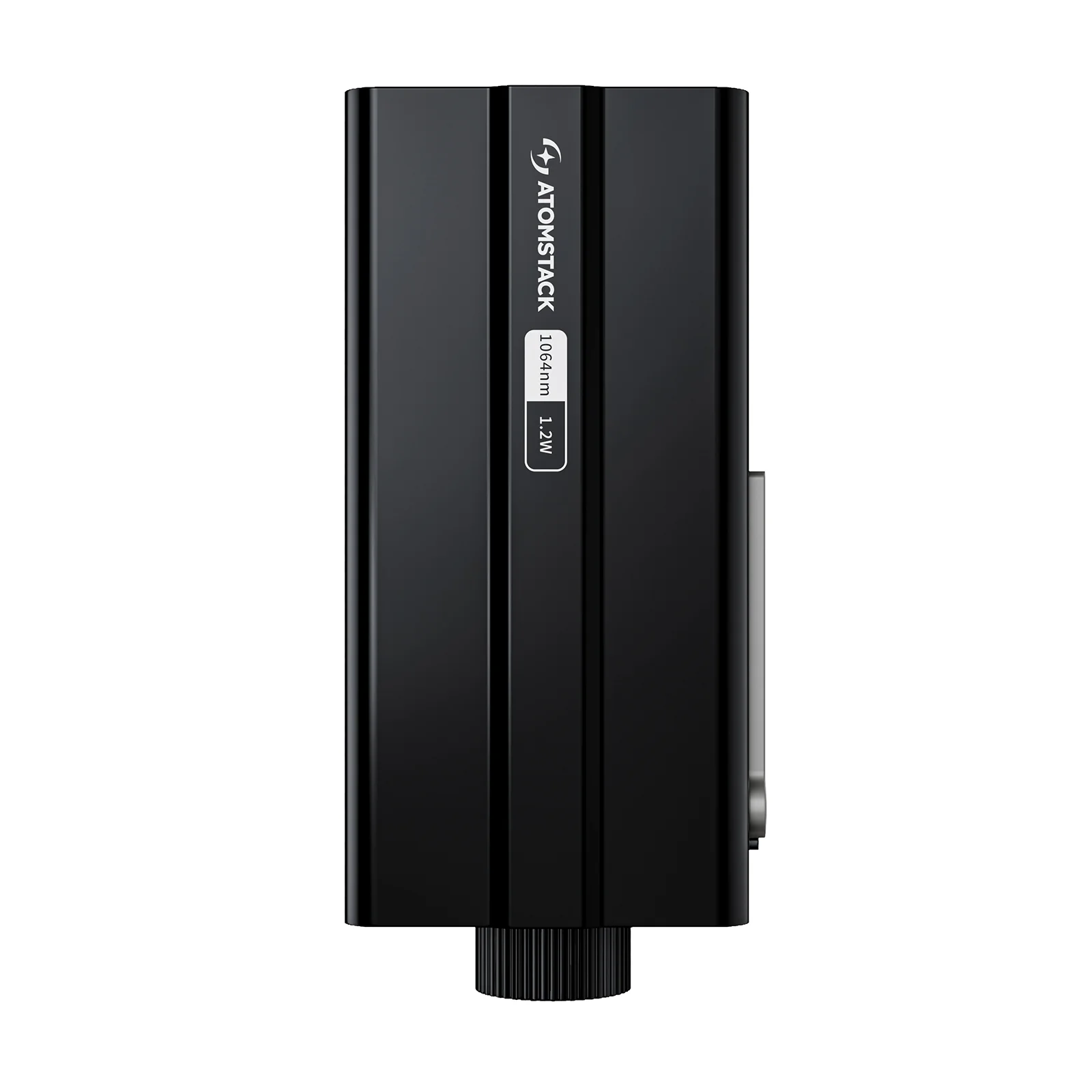

AtomStack P1 1.2W 1064nm laser module

Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro V2）

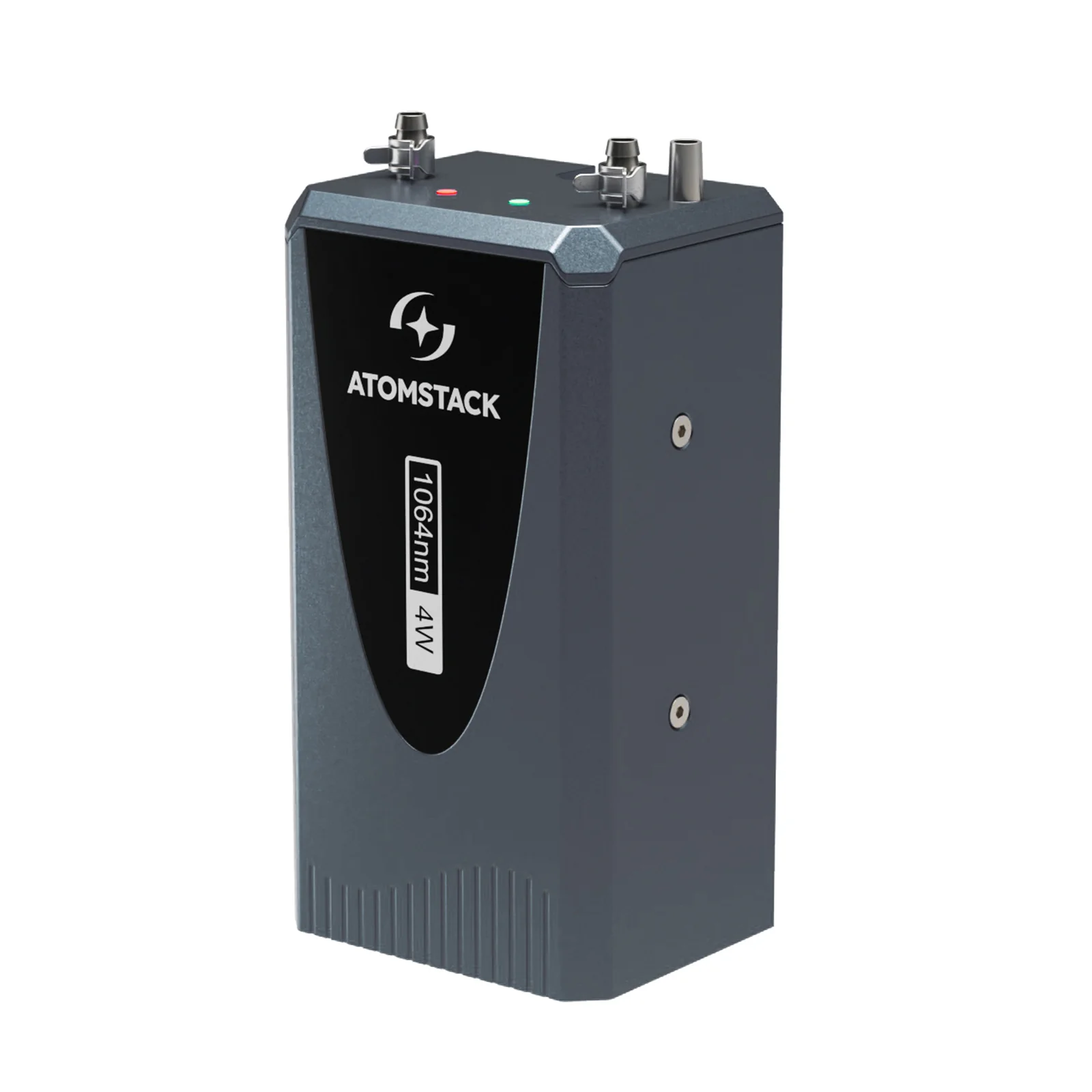

AtomStack IR4 4W IR Laser Module(Only for Glacier)
